3D AutoCAD

TranslateCoordinates/TransformBy Methods

This example shows how to use TranslateCoordinates and TransformBy methods, which are very helpful when drawing 3D objects in autoCAD with VBA

It first draws a closed polyline on the orginal UCS. The original UCS is given a name ‘OriginalUCSj’ so that we can activate the original UCS again.

The polyline is then moved to a new UCS call ‘UCSName1’

It can then be extruded in that new plane we created in the -Z direction of the original USC

Another USC called ‘UCSName2’ is created in which we draw a circle at the origin of that new UCS.

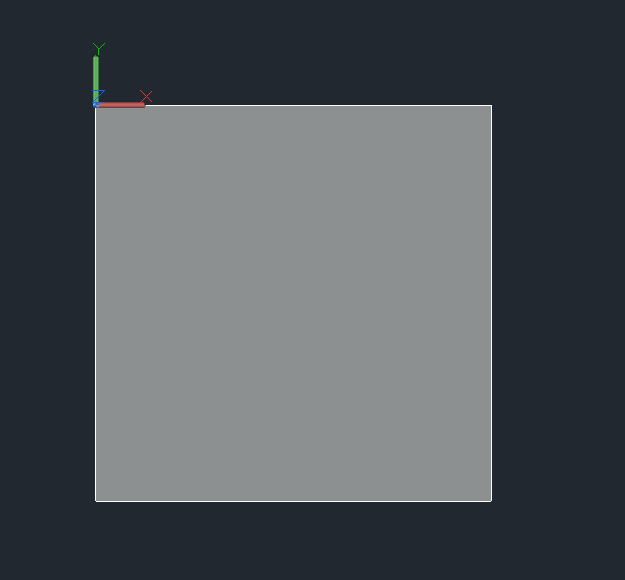

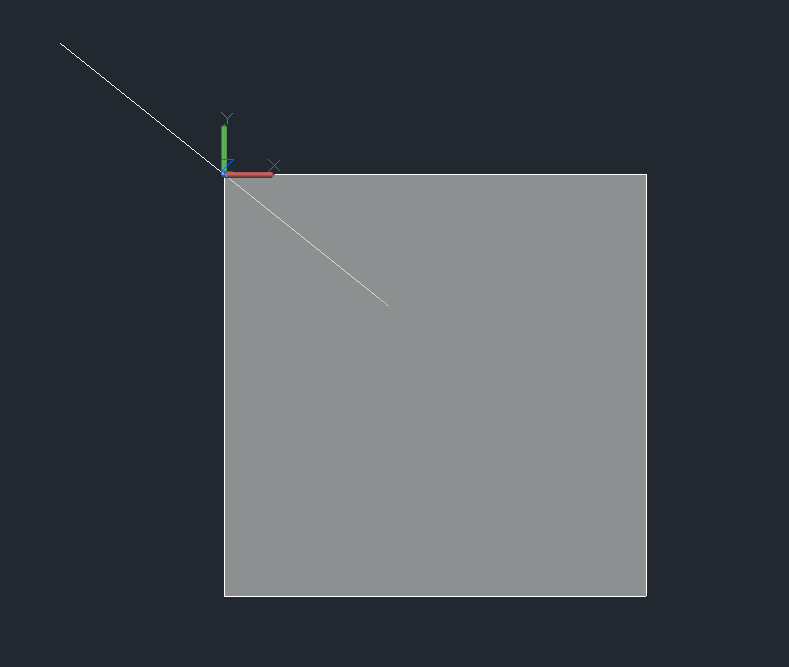

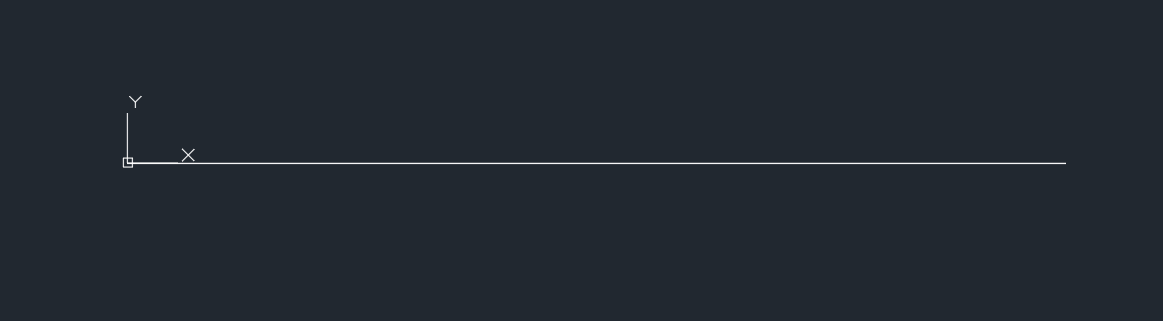

NOTE: all images above are shown form the top view of the original UCS or world UCS

Option Explicit

Dim acadDoc As Object
Dim AcadUcsObject As AcadUCS

Function Cross3D(A As Variant, B As Variant) As Variant
    Dim variable_C(0 To 2) As Double
    variable_C(0) = A(1) * B(2) - A(2) * B(1)
    variable_C(1) = -(A(0) * B(2) - A(2) * B(0))
    variable_C(2) = A(0) * B(1) - A(1) * B(0)
    Cross3D = variable_C
End Function

Function Add_UCS_improved(origin As Variant, xAxisPnt _
    As Variant, yAxisPnt As Variant, ucsName As String) As AcadUCS
    Dim xAxisVec(0 To 2) As Double
    Dim yAxisVec(0 To 2) As Double
    Dim perpYaxisPnt(0 To 2) As Double
    Dim xCy As Variant, perpYaxisVec As Variant
    xAxisVec(0) = xAxisPnt(0) - origin(0)
    xAxisVec(1) = xAxisPnt(1) - origin(1)
    xAxisVec(2) = xAxisPnt(2) - origin(2)
    yAxisVec(0) = yAxisPnt(0) - origin(0)
    yAxisVec(1) = yAxisPnt(1) - origin(1)
    yAxisVec(2) = yAxisPnt(2) - origin(2)
    xCy = Cross3D(xAxisVec, yAxisVec)
    perpYaxisVec = Cross3D(xCy, xAxisVec)
    perpYaxisPnt(0) = perpYaxisVec(0) + origin(0)
    perpYaxisPnt(1) = perpYaxisVec(1) + origin(1)
    perpYaxisPnt(2) = perpYaxisVec(2) + origin(2)
    Set AcadUcsObject = acadDoc.UserCoordinateSystems.Add(origin, xAxisPnt, _
        perpYaxisPnt, ucsName)
End Function

Sub draw_CNC_flashing_3Dverify()
    Dim circleObj(1) As AcadCircle
    Dim pointUCS As Variant
    Dim solidObjextrus_sides1 As Acad3DSolid
    Dim curves_sides(0) As AcadEntity
    Dim vertices() As Double
    Dim acadApp As Object
    Dim currUCS As AcadUCS
    Dim PointVariantOrigin(0 To 2) As Double
    Dim PointVariantXAxis(0 To 2) As Double
    Dim PointVariantYAxis(0 To 2) As Double
    Dim plineObjLW As AcadLWPolyline
    Dim TransMatrix As Variant
    Dim regionObj As Variant
    Dim center(0 To 2) As Double
    Dim pointObj1 As AcadPoint
    'Check if AutoCAD application is open. If it is not opened create a new instance and make it visible.
    On Error Resume Next
    Set acadApp = GetObject(, "AutoCAD.Application")
    acadApp.Visible = True
    If acadApp Is Nothing Then
        Set acadApp = CreateObject("AutoCAD.Application")
        acadApp.Visible = True
    End If
    'Check (again) if there is an AutoCAD object.
    If acadApp Is Nothing Then
        MsgBox "Sorry, it was impossible to start AutoCAD!", vbCritical, "AutoCAD Error"
        Exit Sub
    End If
    On Error GoTo 0
    acadApp.WindowState = acMax
    'If there is no active drawing create a new one.
    On Error Resume Next
    Set acadDoc = acadApp.Documents.Add
    If Err.Number <> 0 Then
        MsgBox "Could not get the AutoCAD application.  Restart Autocad and try again"
    End If
    On Error GoTo 0
    acadDoc.ActiveSpace = acModelSpace
    'define the original ucs
    With acadDoc
        Set currUCS = .UserCoordinateSystems.Add( _
            .GetVariable("UCSORG"), _
            .Utility.TranslateCoordinates(.GetVariable("UCSXDIR"), acUCS, acWorld, 0), _
            .Utility.TranslateCoordinates(.GetVariable("UCSYDIR"), acUCS, acWorld, 0), _
    End With

    ReDim vertices(7)
    vertices(0) = 0: vertices(1) = 0  'vertex 1
    vertices(2) = 25: vertices(3) = 50 'vertex 2
    vertices(4) = 75: vertices(5) = 50 'vertex 3
    vertices(6) = 75: vertices(7) = 0 'vertex 4
    Set plineObjLW = acadDoc.ModelSpace.AddLightWeightPolyline(vertices)
    plineObjLW.Closed = True

    PointVariantOrigin(0) = 0
    PointVariantOrigin(1) = 0
    PointVariantOrigin(2) = 0
    PointVariantXAxis(0) = 50
    PointVariantXAxis(1) = 0
    PointVariantXAxis(2) = 0
    PointVariantYAxis(0) = 0
    PointVariantYAxis(1) = 0
    PointVariantYAxis(2) = 50
    Call Add_UCS_improved(PointVariantOrigin, PointVariantYAxis, PointVariantXAxis, "UCSName1")

    TransMatrix = AcadUcsObject.GetUCSMatrix()
    plineObjLW.TransformBy (TransMatrix)
    Set curves_sides(0) = plineObjLW
    regionObj = acadDoc.ModelSpace.AddRegion(curves_sides)
    Set solidObjextrus_sides1 = acadDoc.ModelSpace.AddExtrudedSolid(regionObj(0), -50, 0)
    PointVariantOrigin(0) = 0
    PointVariantOrigin(1) = 0
    PointVariantOrigin(2) = 0
    PointVariantXAxis(0) = 10
    PointVariantXAxis(1) = -8
    PointVariantXAxis(2) = 0
    PointVariantYAxis(0) = 0
    PointVariantYAxis(1) = 0
    PointVariantYAxis(2) = 2
    Call Add_UCS_improved(PointVariantOrigin, PointVariantYAxis, PointVariantXAxis, "UCSName2")
    acadDoc.ActiveUCS = AcadUcsObject

    Dim cir_rad As Double

    cir_rad = 25
    center(0) = 0
    center(1) = 0
    center(2) = 0
    pointUCS = acadDoc.Utility.TranslateCoordinates(center, acUCS, acWorld, False)
    Set circleObj(1) = acadDoc.ModelSpace.AddCircle(pointUCS, cir_rad)
    Set pointObj1 = acadDoc.ModelSpace.AddPoint(pointUCS)
    'return to the original UCS
    acadDoc.ActiveUCS = currUCS
    acadDoc.Regen acAllViewports
End Sub
