Move Coordinates of Polyline After It Is Already Drawn

Sub MoveCoordinatesPolylineAfterAlreadyDrawn()


    Dim VFG(7) As Double
    Dim retCoord(0 To 1) As Double

    Set acadApp = GetObject(, "AutoCAD.Application")
    Set acadDoc = acadApp.ActiveDocument

    Set objss = acadDoc.SelectionSets.Add("ToErase")
    objss.Select acSelectionSetAll
    objss.Erase
    objss.Delete

    VFG(0) = 0: VFG(1) = 0   'vertex 1
    VFG(2) = 0: VFG(3) = -5 'vertex 2
    VFG(4) = 10: VFG(5) = -5 'vertex 3
    VFG(6) = 10: VFG(7) = 0 'vertex 4

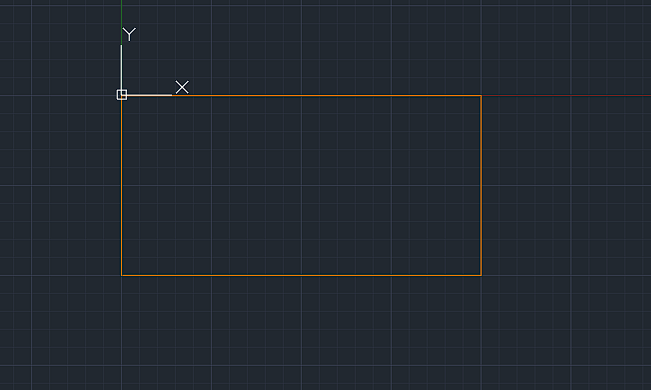

    Set plineObjLW_a = acadDoc.ModelSpace.AddLightWeightPolyline(VFG)
    plineObjLW_a.Closed = True

    retCoord(0) = 2
    retCoord(1) = 3

    plineObjLW_a.Coordinate(3) = retCoord


    acadApp.ZoomExtents

    acadDoc.Regen acAllViewports


End Sub
